Mechanical specifications

The sensor consists of the following parts:
1. Processing unit with electronics and operator panel integrated.
2. Infrared sender (3-pole connector), 2 m cable.
3. Receiver (4-pole connector), 2 m cable.

Additional equipment:
4. Power cable with battery elimination connector.
5. I/O (input/output) 8-pole flat cable with modular connector and security pull latch.
6. Serial 4-pole cable with modular connector and security pull latch.


All connectors are polarised. Sender and receiver are included with each sensor.

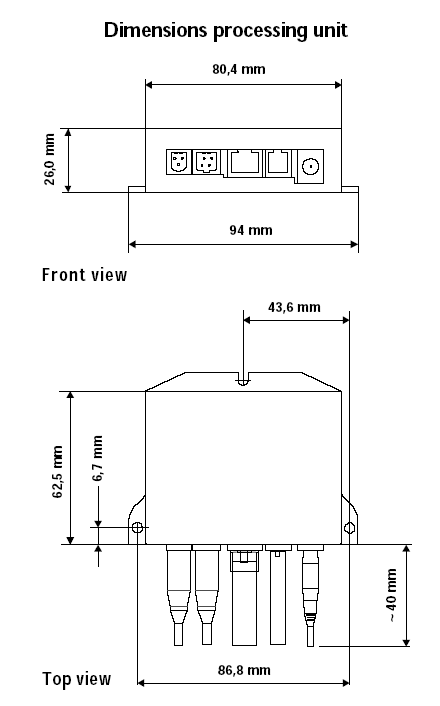

The processing unit should be mounted with three (3) M3-M4 screws in a vibration free surrounding.

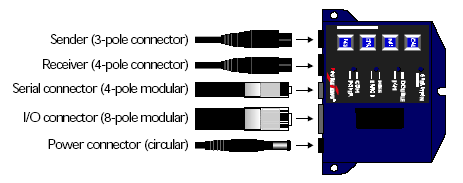

The diagram below shows the connector placement in the
processing unit:
