Introduction
The StripOne is handcrafted in Sweden. Built and developed by engineers for engineers! The all discrete Class StripOne uses only the very best componentsavailable on the market today. The extremely user friendly StripOne is a high-end recording channel strip encompassing an all tube microphone preamplifier that features input gain, output gain, phantom power, low-cut, phase and direct out. The all discrete optical limiter of the StripOne features threshold, output gain, "air" which keeps the high frequencies intact, link and bypass.

The sound of the StripOne preamp can be described as punchy, natural and clear. And the limiter as invisible, gluey, super fast, and if pushed, Beatle'ish and smacky. For that vintage sound, push the input gain and lower the output gain in the preamp and you'll get a nice rich and compressed tube sound. By switching of the "Preamp to Limiter" you can operate the preamp and limiter separate or use it as an insert between the preamp and limiter.

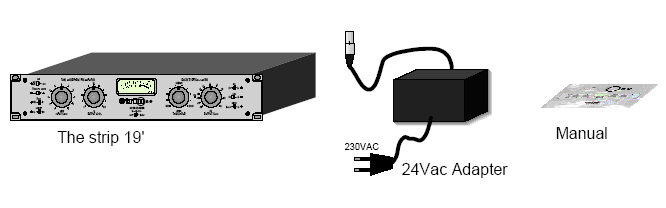

In the box

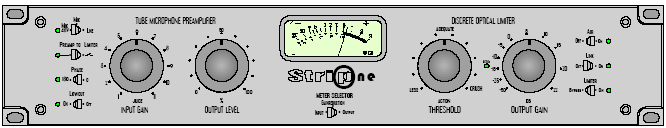

Front panel


The StripOne is the ideal choice for the recording or mixing of a mono signal, whether it's a vocal track or a guitar plugged directly into the input. And also the abillity to be linked with a other StripOne for suberb stereo dynamics. The StripOne utilises classic vintage dynamics and mic preamp solutions and also making use of new technology. The mic pre featured in the StripOne has a circuit design based around the old tube. ON OFF POWER 24V AC Made in SWEDEN ALL RIGHTS RESERVED p t S ri by SYSTEMS AB SN: SO-2B-0721-24 LIMITER SECTION MAIN/LIMITER OUTPUT LIMITER INPUT LIMITER LINK TIP - HOT RING - GROUND MICROPHONE PREAMP PREAMP OUTPUT MIC & LINE INPUT ALL XLR IN & OUT PIN 1 - GROUND PIN 2 - HOT PIN 3 - COLD SWITCH ON FRONT The StripOne truly sets itself a class apart with the inclusion of a vintage optical Limiter , capable of really heavy compression effects. and a classic analogue circuit designed Mic preamp .

Rear panel

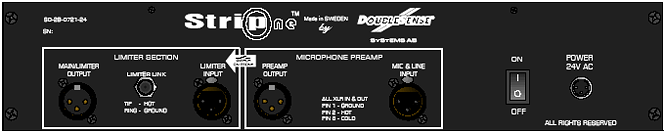

The StripOne features two balanced (TRS, +4dBu)outputs on XLR jack connectors, one transmit the signal from the Mic preamp and one the signal processed by the limiter. There are also two balanced inputs on XLR jack connectors one for a mic/line in, and one for a balanced input on the limiter. The balanced output from the Preamp interconnects (by a switch on the front) to the balanced input on the limiter for easy strip use or singel divice use. The 1/4"jack Link connector allows the StripOne to be connected to an other StripOne for a linked stereo limiter.

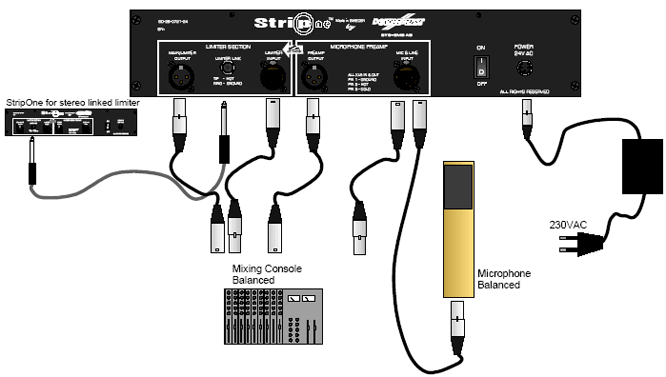

Connecting the StripOne

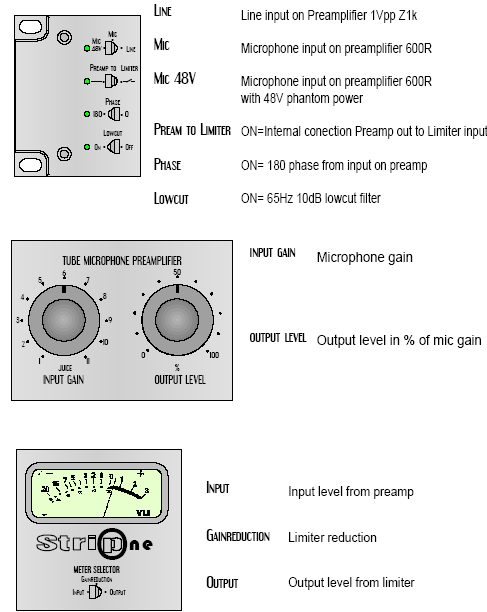

Micophone preamplifier funktions

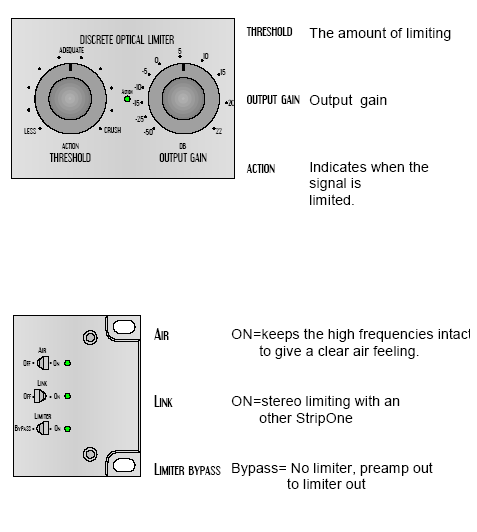

Limiter funktions

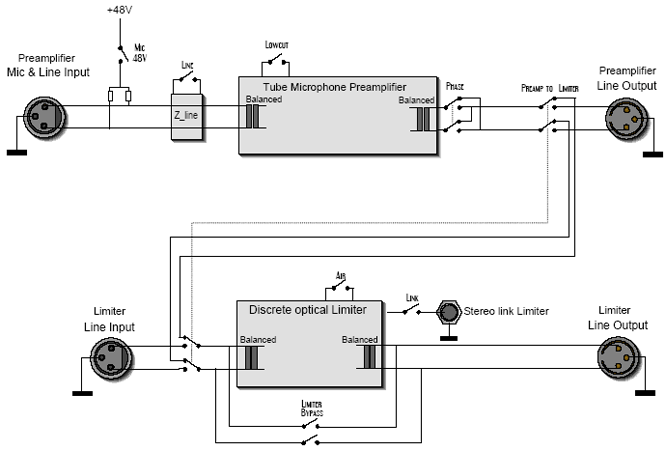

Block Diagram of the StripOne
