Micone Technical info

IMPORTANT SAFETY INSTRUCTIONS
INTRODUCTION
IN THE BOX
CONNECTIONS
SETTING THE MIC PATTERN
SETTINGS EXAMPLE
SPECIFICATIONS

IMPORTANT! When using MicOne for vocals

Always use a external pop screen!
(The MicOne has no screen due to unwanted sound tampering.)

IMPORTANT SAFETY INSTRUCTIONS
Please read all of these instructions and save them for future reference.
• Do not use a damaged or frayed power cord.
• Unplug the unit before cleaning. Clean with a damp cloth only. Do not spill liquid
on the unit.
• Unplug the unit and refer servicing to qualified service personnel under the
following conditions: If the power cord or plug is damaged; if liquid has entered
the unit; if the unit has been dropped or the case damaged; if the unit does not
operate normally or exhibits a distinct change in performance. Adjust only those
controls that are covered by the operating instructions.
This unit is supplied with an external power supply dependant on the region in which
the MicOne is purchased. To avoid the risk of fire, replace the mains fuse only
with the correct value fuse, as marked on the plug. The external power supply unit
contains no user serviceable parts. Refer all servicing to a qualified service engineer,
through the appropriate dealer.




Introduction
The MicOne is handcrafted in Sweden. Built and developed by engineers for engineers! The all tube, multi pattern microphone uses the very best components available on the market today. The mic employs a 1,25" gold diaphragm and a selected EF86 pentode tube. The MicOne is a true variable-pattern microphone, capable of doing omni, cardioid and figure-of-eight. This is achieved by polarizing the front and back diaphragm of the capsule in different ways with respect to the centre electrode. The sound of the MicOne can be described as smooth, accurate, fast, tight, natural. Favourite applications have turned out to be vocals, acoustic guitar, guitar cabs, piano and drum overheads. The MicOne can easily handle high SPL without any signs of distortion.

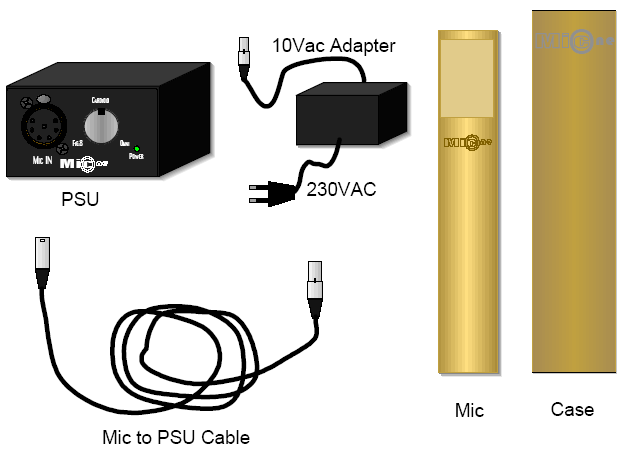

In the box

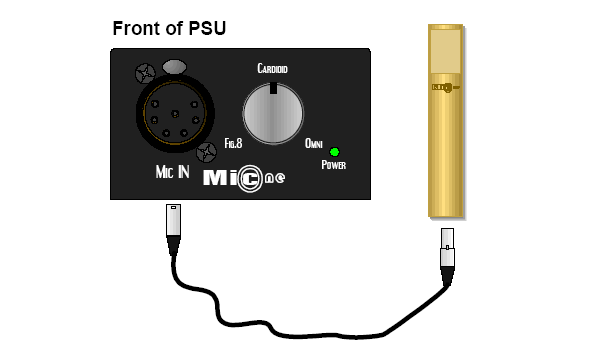

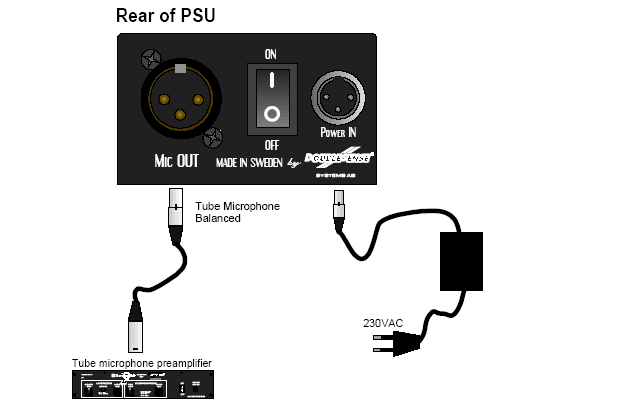

Connections

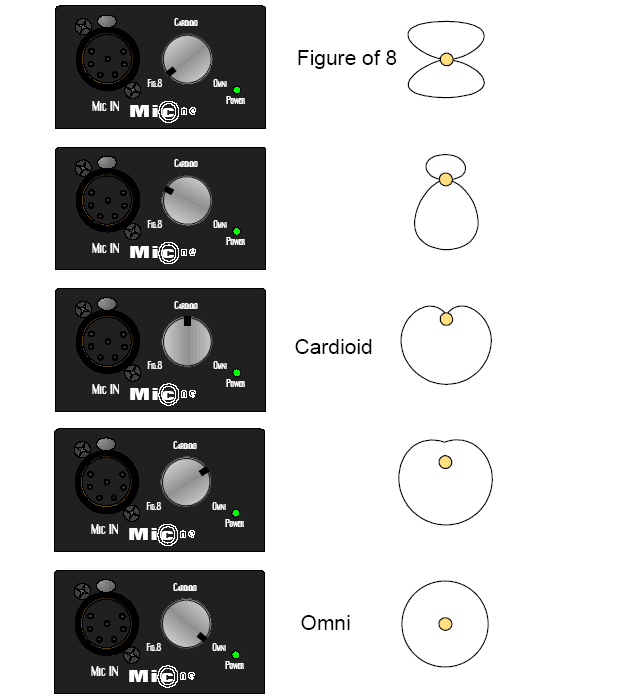

Setting the mic pattern







Settings example


by Tobias Lindell



Vocals

A good starting point is cardioid, adjust the setting to taste. If you want the sound a touch smoother and fatter, turn the knob a tad anticlockwise.
Acoustic Guitar

If you want a little more of your room in your recording, start with 80% omni. If you desire a warmer and closer sound, turn the knob anticlockwise slowly until you reach satisfaction.
Piano

A good starting point is cardioid, adjust the setting to taste. If you want the sound a touch smoother and fatter, turn the knob a tad anticlockwise.
Drum

The mic sounds great on overheads! Start with cardioid to get a natural and punchy reproduction. If you desire and brighter and forward sound, try fig.8

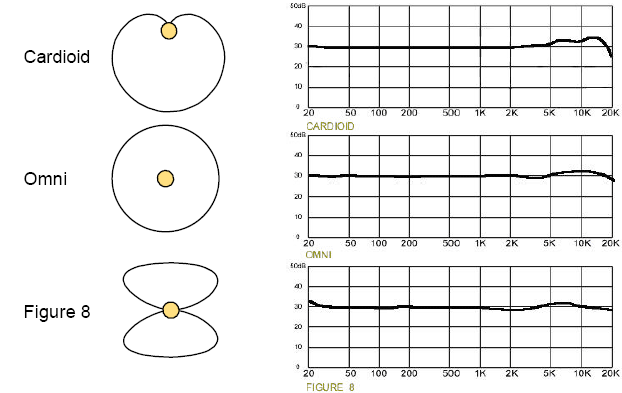

Technical specification


All Tube discrete Class A design
Variable, sweepable pattern
Omni to Cardioid to Figure-8
Frequence response: 20-21kHz
Lundahl Transformer
Selected EF86 Pentode tube
Output impedance 600 ohms
Weight: 1,5 kilos.
Power 10VAC 20VA
